Len Performance Rear Suspension Kit
Arctic Cat Rear
Item #: 061-3100
Manufacturer: LEN PERFORMANCE
1719.9500
EACH
Len Performance Rear Suspension Kit

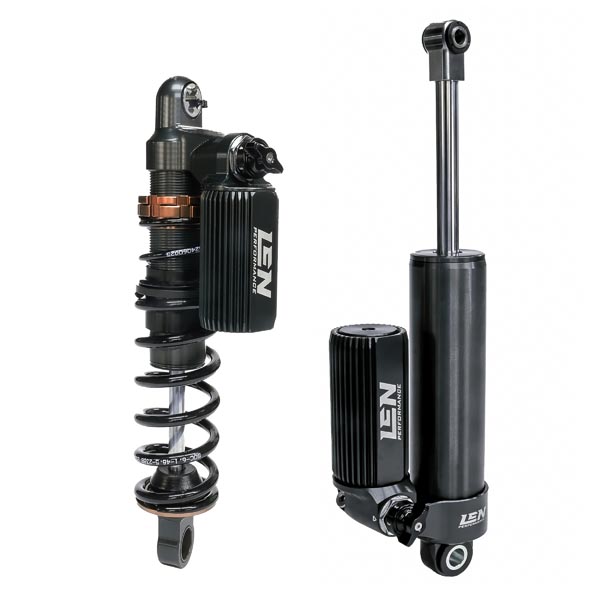

2 SHOCKS TO FIT THE REAR OF A MACHINE (1 FRONT TRACK, 1 REAR TRACK SHOCK)
- SHOCKS USED IN KIT: LS4-11000F / LS4-11000R
| SHOCK LOCATION | FRONT TRACK | REAR TRACK | |
|---|---|---|---|
| SHOCK WEIGHT (lbs) | 4.25 | 3.95 | |
| SHOCK LENGTH OPEN | 315mm / 12.4inch | 386mm / 15.2inch | |
| SHOCK LENGTH CLOSED | 220mm / 8.7inch | 264mm / 10.4inch | |
| SHOCK STROKE LENGTH | 95mm / 3.7inch | 122mm / 4.8inch | |
| EYELET TOP ID | 22.3mm / 0.9inch | 14.3mm / 0.6inch | |
| EYELET TOP WIDTH | 22.4mm / 0.9inch | 24.8mm / 1.0inch | |
| EYELET BOTTOM ID | 22.3mm / 0.9inch | 10.3mm / 0.4inch | |
| EYELET BOTTOM WIDTH | 18.4mm / 0.7inch | 25.3mm / 1.0inch | |
| SPRING DIAMETER | 65.3mm / 2.6inch | N/A | |
