Len Performance Rear Suspension Kit
Polaris Rear
Item #: 064-3101
Manufacturer: LEN PERFORMANCE
1559.9500
EACH

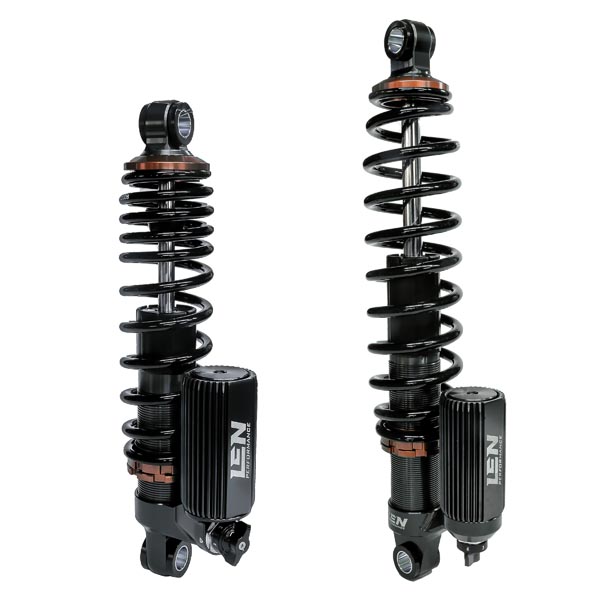

Len Performance Rear Suspension Kit
2 SHOCKS TO FIT THE REAR OF A MACHINE (1 FRONT TRACK, 1 REAR TRACK SHOCK)
- SHOCKS USED IN KIT: LS4-50000F / LS4-50001R
| SHOCK LOCATION | FRONT TRACK | REAR TRACK | |
|---|---|---|---|
| SHOCK WEIGHT (lbs) | 4.35 | 6.10 | |
| SHOCK LENGTH OPEN | 332mm / 13.1inch | 442mm / 17.4inch | |
| SHOCK LENGTH CLOSED | 247mm / 9.7inch | 307mm / 12.1inch | |
| SHOCK STROKE LENGTH | 85mm / 3.3inch | 135mm / 5.3inch | |
| EYELET TOP ID | 17.7mm / 0.7inch | 17.3mm / 0.7inch | |
| EYELET TOP WIDTH | 29.7mm / 1.2inch | 29.2mm / 1.1inch | |
| EYELET BOTTOM ID | 17.7mm / 0.7inch | 17.8mm / 0.7inch | |
| EYELET BOTTOM WIDTH | 22.2mm / 0.9inch | 29.3mm / 1.2inch | |
| SPRING DIAMETER | 71mm / 2.8inch | 85mm / 3.3inch | |
