Len Performance Rear Suspension Kit
Polaris Rear
Item #: 064-3102
Manufacturer: LEN PERFORMANCE
1459.9500
EACH

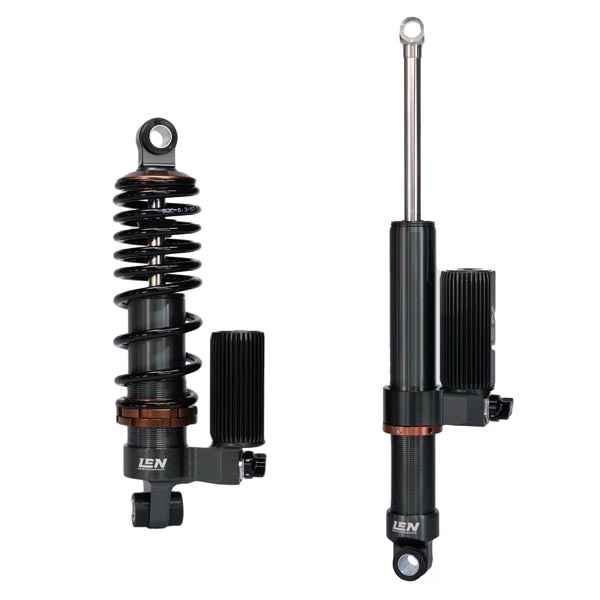

Len Performance Rear Suspension Kit
2 SHOCKS TO FIT THE REAR OF A MACHINE (1 FRONT TRACK, 1 REAR TRACK SHOCK)
- SHOCKS USED IN KIT: LS4-50003F / LS4-50003R
| SHOCK LOCATION | FRONT TRACK | REAR TRACK | |
|---|---|---|---|
| SHOCK WEIGHT (lbs) | 5.20 | 3.84 | |
| SHOCK LENGTH OPEN | 329mm / 12.96inch | 489mm / 19.26inch | |
| SHOCK LENGTH CLOSED | 232mm / 9.14inch | 342mm / 13.47inch | |
| SHOCK STROKE LENGTH | 97mm / 3.82inch | 147mm / 5.79inch | |
| EYELET TOP ID | 14.5mm / 0.58inch | 17.8mm / 0.71inch | |
| EYELET TOP WIDTH | 42.7mm / inch | 29.5mm / 1.17inch | |
| EYELET BOTTOM ID | 18mm / 0.71inch | 8mm / 0.32inch | |
| EYELET BOTTOM WIDTH | 29.5mm / 1.17inch | 22.3mm / 0.88inch | |
| SPRING DIAMETER | 72mm / 2.84inch | N/A | |
