Len Performance Rear Suspension Kit
Polaris Rear
Item #: 064-3103
Manufacturer: LEN PERFORMANCE
1679.9500
EACH

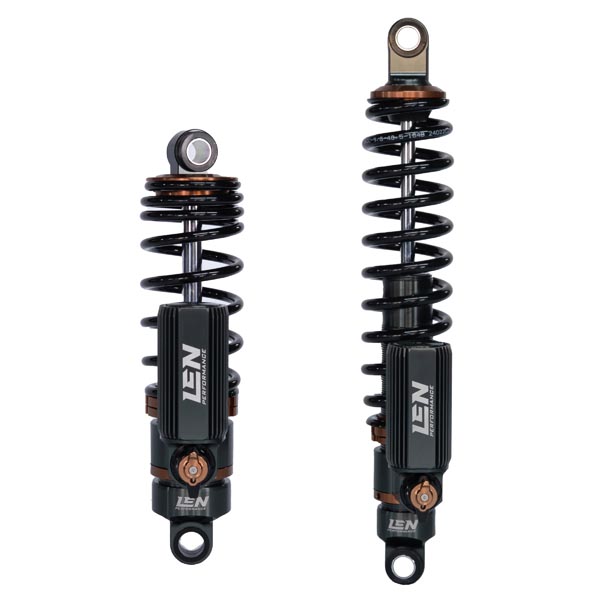

Len Performance Rear Suspension Kit
2 SHOCKS TO FIT THE REAR OF A MACHINE (1 FRONT TRACK, 1 REAR TRACK SHOCK)
- SHOCKS USED IN KIT: LS4-50004F / LS4-50004R
| SHOCK LOCATION | FRONT TRACK | REAR TRACK | |
|---|---|---|---|
| SHOCK WEIGHT (lbs) | 4.45 | 6.45 | |
| SHOCK LENGTH OPEN | 306mm / 12.05inch | 435mm / 17.13inch | |
| SHOCK LENGTH CLOSED | 213mm / 8.39inch | 290mm / 11.42inch | |
| SHOCK STROKE LENGTH | 93mm / 3.66inch | 145mm / 5.71inch | |
| EYELET TOP ID | 20.5mm / 0.81inch | 17.8mm / 0.71inch | |
| EYELET TOP WIDTH | 21.8mm / 0.86inch | 29.5mm / 1.17inch | |
| EYELET BOTTOM ID | 18mm / 0.71inch | 18mm / 0.71inch | |
| EYELET BOTTOM WIDTH | 29.5mm / 1.17inch | 29.5mm / 1.17inch | |
| SPRING DIAMETER | 72mm / 2.84inch | 63mm / 2.49inch | |
