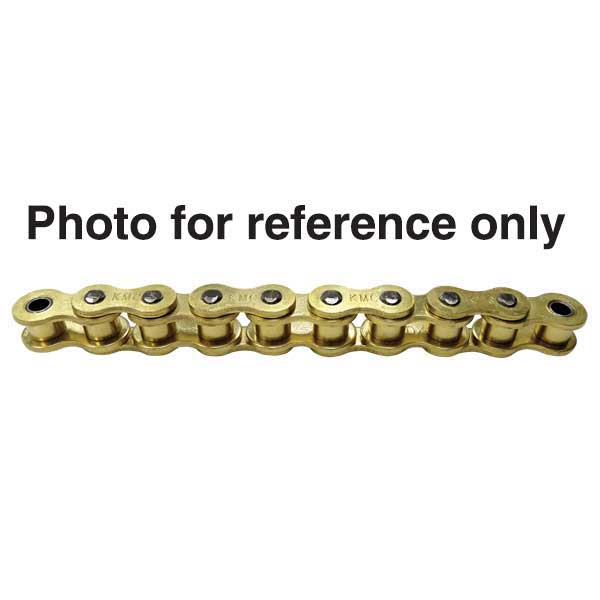

KMC Heavy Duty Drive Chain
520 X 100
Item #: 24-01030
Manufacturer: KMC
44.9500
EACH
KMC HEAVY DUTY DRIVE CHAIN
KMC offers a full range of selection for regular motorcycle chains that feature the properties of high performance, durability and accuracy.
| Model |
Pitch | Roller link Width (Min) | Roller Dia (Max) | Pin Link Plate Thickness | Roller Link Plate Thickness | Roller Link Plate Height (Max) | Pin Dia. (Max) | Over-All Width Riv. (Max) | Over-All Width Con (Max) | Tensile Strength Min | Tensile Strength Average | App. Displacement (Max) |
| P | W | D | T1 | T2 | H | d | L |
G | Â | Â | Â | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kgf | kgf | Â | |
| 520 | 15.875 |
6.25 | 10.61 | 2.35 |
2.35 |
15 | 5.09 |
18.55 |
20.5 |
3100 | 3300 |
250cc |
