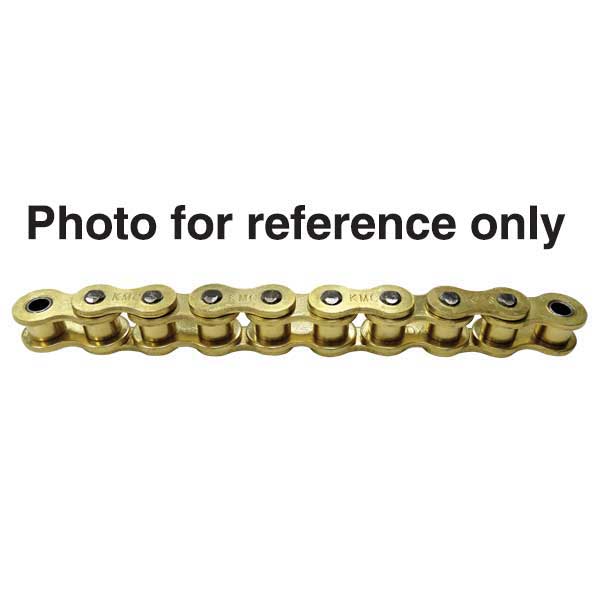

KMC Drive Chain Dx
428Dx 120 Motocross
Item #: 24-01054
Manufacturer: KMC
56.9500
EACH
KMC DRIVE CHAIN DX
For Off-Road application, chain should be promoted with upgraded steel alloy for all parts, subject to going through exclusive heat-treating process as well, to remarkably reinforce its toughness against rugged terrain riding. KMC employs chromized pin and solid bushing into this chain to boost up its wear endurance and shock absorption to a great extent. Its outstanding performance does help inviting enjoyment and excitement to cyclist while going extreme.
| Model |
Pitch | Roller link Width (Min) | Roller Dia (Max) | Pin Link Plate Thickness | Roller Link Plate Thickness | Roller Link Plate Height (Max) | Pin Dia. (Max) | Over-All Width Riv. (Max) | Over-All Width Con (Max) | Tensile Strength Min | Tensile Strength Average | App. Displacement (Max) |
| P | W | D | T1 | T2 | H | d | L |
G | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kgf | kgf | Â | |
| 428DX | 12.7 | 7.85 |
8.51 | 2 |
2 |
12.5 | 4.55 |
19.05 |
20.25 |
2500 |
3000 |
150cc |
