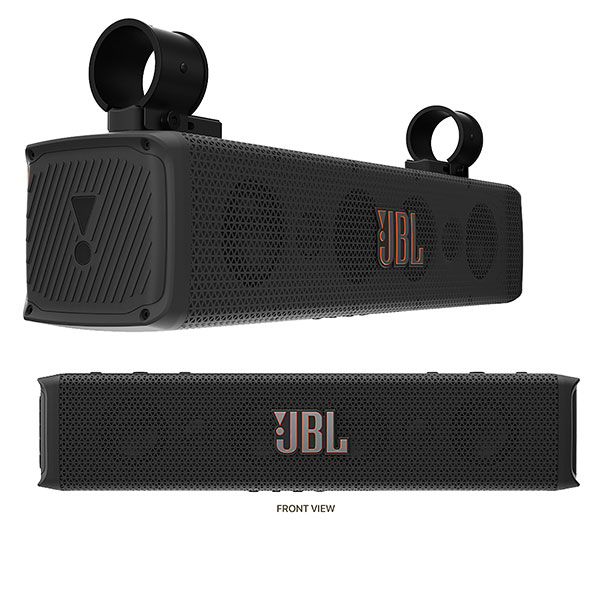

JBL RALLY BAR SOUNDBAR
Item #: 33-00305
Manufacturer: JBL
999.9900
EACH
JBL RALLY BAR SOUNDBAR
IP66 Rated Water and Dust Resistant Bluetooth Soundbar. Extraordinary sound experience to UTVs, golf carts, boats and other vehicle built for recreation. The innovative mounting kits design (patent pending) offers multiple position combinations on top and back to accommodate a variety of installation requirements. Bluetooth, USB disk and Aux-in audio players are supported. HI-Resolution Audio for AUX-IN input audio source is available.Each RallyBar can be used by itself, or multiple of one particular RallyBar, or RallyBar family products (RallyBar, RallyBar S, RallyBar XL)
- 150Wrms Class-D Amplifier Built-in
- Support Broadcast Mode
- Support Party Mode
- JBL Pro Sound
- Music Remote Control by JBL Click Sold Separately
- Support Bluetooth, USB Disk and 3.5mm Auxiliary Input Audio Source Play
- Variable AUX-OUT
- 3 Different Gain Settings: when connected by Aux-in audio:2V, 4V, and 6V
| RALLY BAR S | RALLY BAR | RALLY BAR XL | |
| Transducers | 4x 2.75"(70mm) woofers; 2x 1"(25mm) Tweeters;2 x 7.2"(182.8mm)x3"(76.2mm) Racetrack Passive Radiators |
4x 2.75"(70mm) woofers; 2x 1"(25mm) Tweeters;2 x 7.2"(182.8mm)x3"(76.2mm) Racetrack Passive Radiators |
8x 2.75"(70mm) woofers; 2x 1"(25mm) Tweeters;4 x 7.2"(182.8mm)x3"(76.2mm) Racetrack Passive Radiators |
| Output Power | 150WRMS; 300W PEAK (IEC60268) |
150WRMS; 300W PEAK (IEC60268) |
3000WRMS; 600W PEAK (IEC60268) |
| THD at Rated RMS Power | <1% | <1% | <1% |
| Voltage Range | 9.6 - 16VDC | 9.6 - 16VDC | 9.6 - 16VDC |
| Quiescent Current Draw | <0.9A | <0.9A | <0.9A |
| Maximum Current Draw | 25A | 25A | 25A |
| Frequency Response | 45Hz-40kHz | 45Hz-40kHz | 45Hz-40kHz |
| Signal-to-Noise Ratio | > 80 dB | > 80 dB | > 80 dB |
| Cable Type | 12 AWG. | 12 AWG. | 10 AWG. |
| Cable Length | 12 Feet (3.66m) | 12 Feet (3.66m) | 12 Feet (3.66m) |
| Bluetooth Version | 5.3 | 5.3 | 5.3 |
| Bluetooth Profile | A2DP V1.3, AVRCP V1.6 | A2DP V1.3, AVRCP V1.6 | A2DP V1.3, AVRCP V1.6 |
| Bluetooth Transmitter Frequency Range | 2400 MHz - 2483.5 MHz | 2401 MHz - 2483.5 MHz | 2402 MHz - 2483.5 MHz |
| Bluetooth Transmitter Power | =< 15 dBm (EIRP) | =< 15 dBm (EIRP) | =< 15 dBm (EIRP) |
| Aux-In | 2Vrms(0.35Vrms - 2Vrms);4Vrms(0.7Vrms - 4Vrms);6Vrms(1.05Vrms - 6Vrms) (3.5 mm connector) |
2Vrms(0.35Vrms - 2Vrms);4Vrms(0.7Vrms - 4Vrms);6Vrms(1.05Vrms - 6Vrms) (3.5 mm connector) |
2Vrms(0.35Vrms - 2Vrms);4Vrms(0.7Vrms - 4Vrms);6Vrms(1.05Vrms - 6Vrms) (3.5 mm connector) |
| Aux-Out | 2 Vrms (3.5 mm connector) | 2 Vrms (3.5 mm connector) | 2 Vrms (3.5 mm connector) |
| USB Format | FAT16, FAT32 | FAT16, FAT32 | FAT16, FAT32 |
| Soundbar Weight | 11.46 lbs (5.2kg) | 11.46 lbs (5.2kg) | 20.83 lbs (9.45 kg) |
