Home  >  ATV and UTV  >  Electrical  >  Spark Plugs  > NGK V-Power Spark Plug

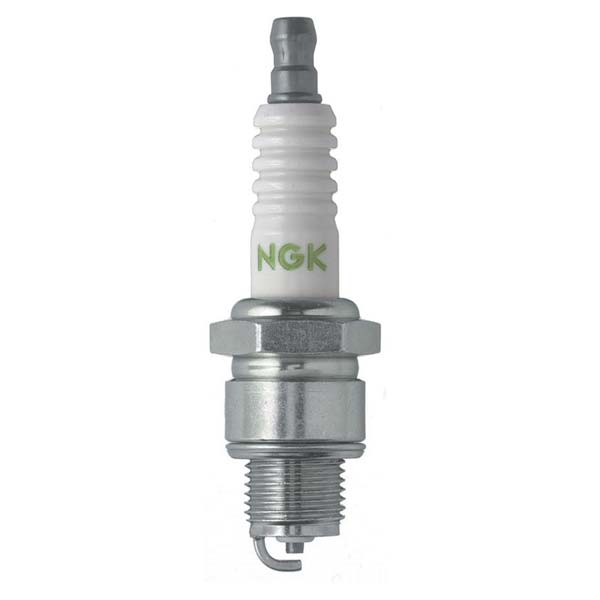

NGK V-Power Spark Plug
4838 BP8H-N-10

Item #: BP8H-N-10
Manufacturer: NGK
7.9500
EACH

NGK 4838 BP8H-N-10 V-Power Spark Plug

NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage
  • Strengthened Ground Electrode

Shell
Thread Diameter 14mm
Thread Pitch 1.25mm
Seat Type Gasket
Reach 12.7mm (1/2")
Hex Size 13/16" (21mm)
Terminal Type Solid
Overall Height JIS
Gap .039" (1.0mm)

Center Electrode
Material Nickel
Type V-Cut
Size 2.5mm
Projection Projected

Ground Electrode
Material Nickel
Type Standard
Shape
Quantity 1

Specifications
Resistor No
Resistor Value 1k Ohm
Heat Range 8
Torque Specs Cast Iron: 18-25.3 lb. ft.
Aluminum: 18-21.6 lb. ft.
Longevity 30k Miles
