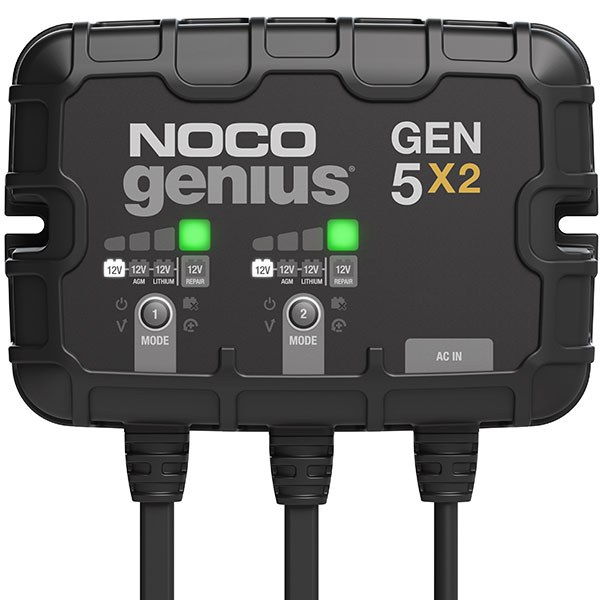

NOCO ON-BOARD BATTERY CHARGER, MAINTAINER & DESULFATOR
2-BANK 10-AMP
Item #: 880-9261
Manufacturer: NOCO
359.9500
EACH

NOCO 2-Bank, 10-Amp On-Board Battery Charger, Battery Maintainer, and Battery Desulfator
Meet the all-new GEN5X2. Similar to our GENM2, only better. It's 27% smaller and delivers 43% more power. It's one of the best performing onboard marine battery chargers we have ever made. A two-bank onboard battery charger rated at 10-amps (5-amps per bank) for 12-volt batteries, including marine, boat, starter, and deep-cycle batteries. Independently charge and control each battery bank with selectable charging modes - including 12V, 12V AGM, 12V Lithium, and 12V Repair Mode - for all types of lead-acid and lithium-ion batteries.
- A two-bank on-board battery charger rated at 5-amps for 12-volt batteries, including marine, boat, starter, and deep-cycle batteries.
- Independently charge and control each battery bank with selectable charging modes - including 12V, 12V AGM, 12V Lithium, and 12V Repair Mode - for all types of lead-acid and lithium-ion batteries.
- An integrated thermal sensor detects the ambient temperature and alters the charge to eliminate over-charging in hot climates and under-charging in cold climates.
- Charges batteries as low as 1-volt. Or use the all-new force mode that allows you to take control and manually begin charging dead batteries down to zero volts.
- Automatically detects battery sulfation and acid stratification to restore lost battery performance for stronger engine starts and extended battery life.
- It's not just a trickle charger; it's an advanced battery maintainer. A fully automatic, worry-free battery charger for everyday use - 24/7 - with zero overcharge.
- A simplified mounting system allows for quick and easy installations in any direction - even up-side-down - with an integrated anti-vibration backing to isolate shock, vibration, and noise.
- A fully-sealed and waterproof onboard battery charger with an ingress protection rating of IP68, but has survived brutal life cycle testing, including thousands of hours underwater.
- WHAT'S IN THE BOX: GEN5X2 On-Board Battery Charger, (2) #8 27mm Self-Tapping Screws & User Guide & Warranty
Operating Requirements
- Line Voltage: 120V to 240V AC
- Frequency: 50Hz to 60Hz
- Operating Temperature: -4ð to 104ð F (-20ð to 50ð C)
- Storage Temperature: -22ð to 140ð F (-30ð to 60ð C)
- Relative Humidity: 0 to 95% Non-Condensing
Charging
- Current: 5 Amps DC x 2 Banks
- Voltages: 12V
- Chemistry: Lead-Acid and Lithium
- Types: Wet, Gel, MF, CA, EFB, AGM, Lithium
- Battery Capacity Range: Up to 120 Amp-Hours
- Maintenance: All Battery Sizes
Power
- Consumption: 145 Watts (Max), 2 Banks
Safety
- Short-Circuit: Yes
- Open-Circuit: Yes
- Overheating: Yes
- Overcharge: Yes
- Spark-Proof: Yes
- Reverse Polarity: Yes
Size
- Height: 4.84 Inches (123.0 mm)
- Width: 177.0 Inches (177.0 mm)
- Depth: 56.0 Inches (56.0 mm)
- Weight: 4.17 lbs (1.9 kg)
Cord Management
- DC Cable + Eyelet Length: 72 Inches (182cm)
- DC Cable Size: 16 AWG
- DC Fuse Size: 7.5 AMP MINI î Blade Fuse
- AC Cable Length: 72 Inches (182cm)
- AC Cable Size: 18 AWG
- Oil, gas, grease, water, chemical, UV, abrasion resistant
IP Rating
- IP68
