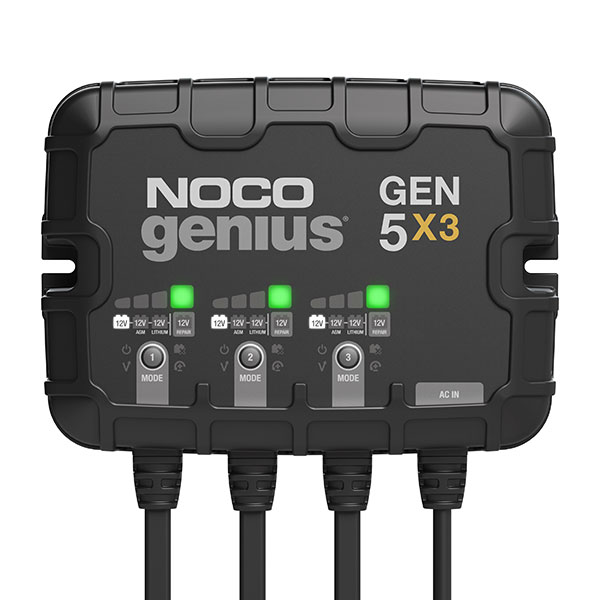

NOCO ON-BOARD BATTERY CHARGER, MAINTAINER & DESULFATOR
3-BANK 15-AMP

Item #: 880-9262
Manufacturer: NOCO
509.9500
EACH

NOCO 3-Bank, 15-Amp On-Board Battery Charger, Battery Maintainer, and Battery Desulfator

Meet the all-new GEN5X3. Similar to our GENM3, only better. It's 37% smaller and delivers 43% more power. It's one of the best performing onboard marine battery chargers we have ever made. A three-bank onboard battery charger rated at 15-amps (5-amps per bank) for 12-volt batteries, including marine, boat, starter, and deep-cycle batteries. Independently charge and control each battery bank with selectable charging modes - including 12V, 12V AGM, 12V Lithium, and 12V Repair Mode - for all types of lead-acid and lithium-ion batteries.

  • A two-bank on-board battery charger rated at 5-amps for 12-volt batteries, including marine, boat, starter, and deep-cycle batteries.
  • Independently charge and control each battery bank with selectable charging modes - including 12V, 12V AGM, 12V Lithium, and 12V Repair Mode - for all types of lead-acid and lithium-ion batteries.
  • An integrated thermal sensor detects the ambient temperature and alters the charge to eliminate over-charging in hot climates and under-charging in cold climates.
  • Charges batteries as low as 1-volt. Or use the all-new force mode that allows you to take control and manually begin charging dead batteries down to zero volts.
  • Automatically detects battery sulfation and acid stratification to restore lost battery performance for stronger engine starts and extended battery life.
  • It's not just a trickle charger; it's an advanced battery maintainer. A fully automatic, worry-free battery charger for everyday use - 24/7 - with zero overcharge.
  • A simplified mounting system allows for quick and easy installations in any direction - even up-side-down - with an integrated anti-vibration backing to isolate shock, vibration, and noise.
  • A fully-sealed and waterproof onboard battery charger with an ingress protection rating of IP68, but has survived brutal life cycle testing, including thousands of hours underwater.
  • WHAT'S IN THE BOX: GEN5X3 On-Board Battery Charger, (2) #8 27mm Self-Tapping Screws & User Guide & Warranty

Operating Requirements

  • Line Voltage: 120V to 240V AC
  • Frequency: 50Hz to 60Hz
  • Operating Temperature: -4ð to 104ð F (-20ð to 50ð C)
  • Storage Temperature: -22ð to 140ð F (-30ð to 60ð C)
  • Relative Humidity: 0 to 95% Non-Condensing

Charging

  • Current: 5 Amps DC x 3 Banks
  • Voltages: 12V
  • Chemistry: Lead-Acid and Lithium
  • Types: Wet, Gel, MF, CA, EFB, AGM, Lithium
  • Battery Capacity Range: Up to 120 Amp-Hours
  • Maintenance: All Battery Sizes

Power

  • Consumption: 220 Watts (Max), 3 Banks

Safety

  • Short-Circuit: Yes
  • Open-Circuit: Yes
  • Overheating: Yes
  • Overcharge: Yes
  • Spark-Proof: Yes
  • Reverse Polarity: Yes

Size

  • Height: 6.50 Inches (165.1 mm)
  • Width: 7.93 Inches (201.3 mm)
  • Depth: 2.17 Inches (55.0 mm)
  • Weight: 6.1 lbs (2.7 kg)

Cord Management

  • DC Cable + Eyelet Length: 72 Inches (182cm)
  • DC Cable Size: 16 AWG
  • DC Fuse Size: 7.5 AMP MINI î Blade Fuse
  • AC Cable Length: 72 Inches (182cm)
  • AC Cable Size: 18 AWG
  • Oil, gas, grease, water, chemical, UV, abrasion resistant

IP Rating

  • IP68
