NGK Racing Plug
3830 BR10EG
Item #: BR10EG
Manufacturer: NGK
15.9500
EACH

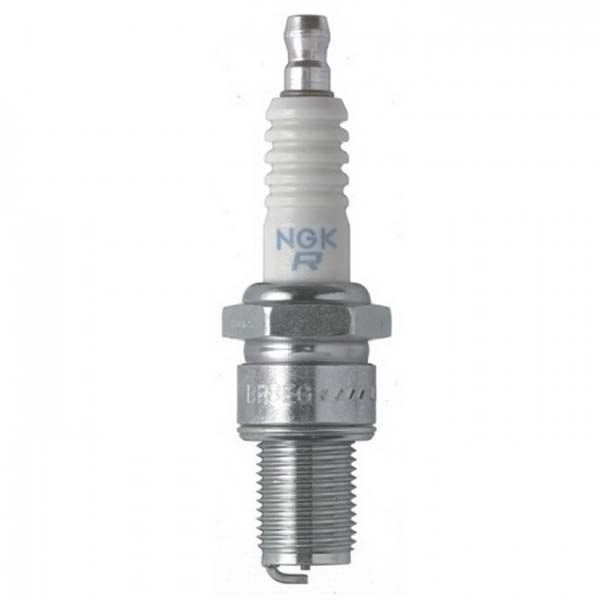

NGK 3830 BR10EG Racing Plug
NGK Racing Series plugs are engineered to withstand the harshest engine conditions. Special insulator nose configurations improve throttle response. Corrugated ribs prevent flashover. Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer. Copper core aids in heat removal. Triple seals prevent leakage.
| Shell | |
| Thread Diameter | 14mm |
| Thread Pitch | 1.25mm |
| Seat Type | Gasket |
| Reach | 19mm (3/4") |
| Hex Size | 13/16" (21mm) |
| Terminal Type | Removable Nut |
| Overall Height | ISO |
| Gap | .024" (0.6mm) |
| Center Electrode | |
| Material | Nickel |
| Type | Fine Wire |
| Size | 1.3mm |
| Projection | Non-Projected |
| Ground Electrode | |
| Material | Nickel |
| Type | Standard |
| Shape | |
| Quantity | 1 |
| Specifications | |
| Resistor | Yes |
| Resistor Value | 5k Ohm |
| Heat Range | 10 |
| Torque Specs | Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft. |
| Longevity | 30k Miles |
