Home  >  ATV and UTV  >  Electrical  >  Spark Plugs  > NGK V-Power Spark Plug

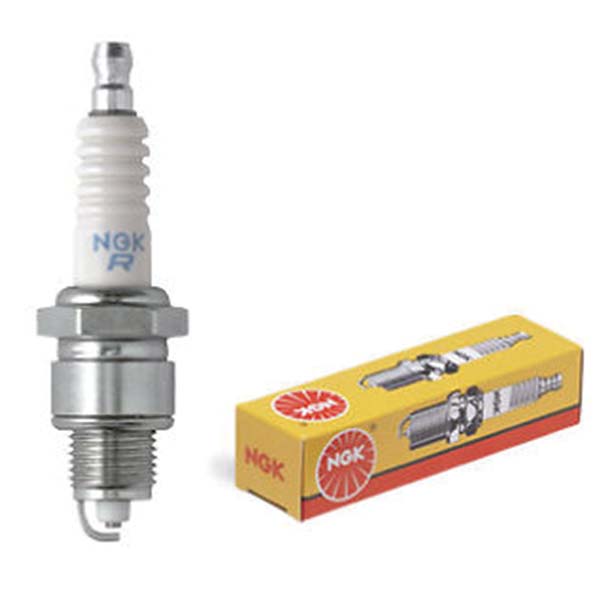

NGK V-Power Spark Plug
7548 BR9EYA

Item #: BR9EY-A
Manufacturer: NGK
9.9500
EACH

NGK 7548 BR9EYA V-Power Spark Plug

NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

  •  Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage

    Shell
    Thread Diameter 14mm
    Thread Pitch 1.25mm
    Seat Type Gasket
    Reach 19mm (3/4")
    Hex Size 13/16" (21mm)
    Terminal Type Solid
    Overall Height ISO
    Gap .031" (0.8mm)

    Center Electrode
    Material Nickel
    Type V-Cut
    Size 2.5mm
    Projection Non-Projected

    Ground Electrode
    Material Nickel
    Type Standard
    Shape
    Quantity 1

    Specifications
    Resistor Yes
    Resistor Value 5k Ohm
    Heat Range 9
    Torque Specs Cast Iron: 18-25.3 lb. ft.
    Aluminum: 18-21.6 lb. ft.
    Longevity 30k Miles
