NGK Surface Gap Spark Plug
2322 BUE

Item #: BUE
Manufacturer: NGK
14.9500
EACH

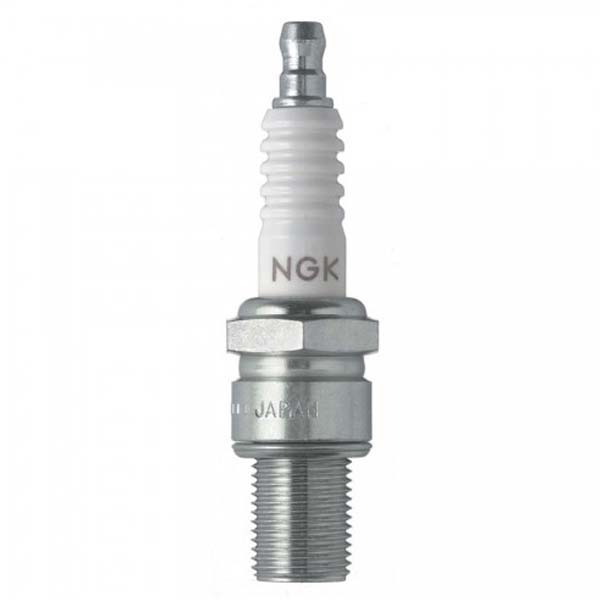

NGK 2322 BUE Surface Gap Spark Plug

Surface gap plugs are nearly immune to pre-ignition, and usually require a special high energy ignition system. They can be susceptible to fouling, especially in colder applications, but may be necessary in high compression applications.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Shell
Thread Diameter 14mm
Thread Pitch 1.25mm
Seat Type Gasket
Reach 19mm (3/4")
Hex Size 13/16" (21mm)
Terminal Type Solid
Overall Height ISO
Gap .050" (1.3mm)

Center Electrode
Material Nickel
Type Standard
Size 2.5mm
Projection Non-Projected

Ground Electrode
Material Nickel
Type Surface Discharge
Shape
Quantity 1

Specifications
Resistor Yes
Resistor Value 1k Ohm
Heat Range 12
Torque Specs Cast Iron: 18-25.3 lb. ft.
Aluminum: 18-21.6 lb. ft.
Longevity
