NGK Nickel Spark Plug
7502 CR9EH-9
Item #: CR9EH-9
Manufacturer: NGK
24.9500
EACH

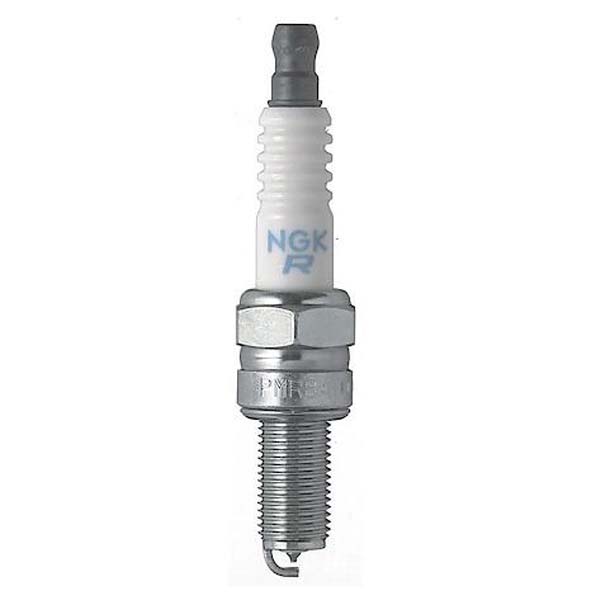

NGK 7502 CR9EH-9 Nickel Spark Plug
NGK standard plugs are constructed for longer life and optimum performance.
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage
- 12.7mm Threaded Reach
| Shell | |
| Thread Diameter | 10mm |
| Thread Pitch | 1.0mm |
| Seat Type | Gasket |
| Reach | 19mm (3/4") |
| Hex Size | 5/8" (16mm) |
| Terminal Type | Threaded Stud |
| Overall Height | ISO |
| Gap | .035" (0.9mm) |
| Center Electrode | |
| Material | Nickel |
| Type | Standard |
| Size | 2.5mm |
| Projection | Non-Projected |
| Ground Electrode | |
| Material | Nickel |
| Type | Standard |
| Shape | |
| Quantity | 1 |
| Specifications | |
| Resistor | Yes |
| Resistor Value | 5k Ohm |
| Heat Range | 9 |
| Torque Specs | Cast Iron: 7.2-10.8 lb. ft. Aluminum: 10.8-8.7 lb. ft. |
| Longevity | 30k Miles |
