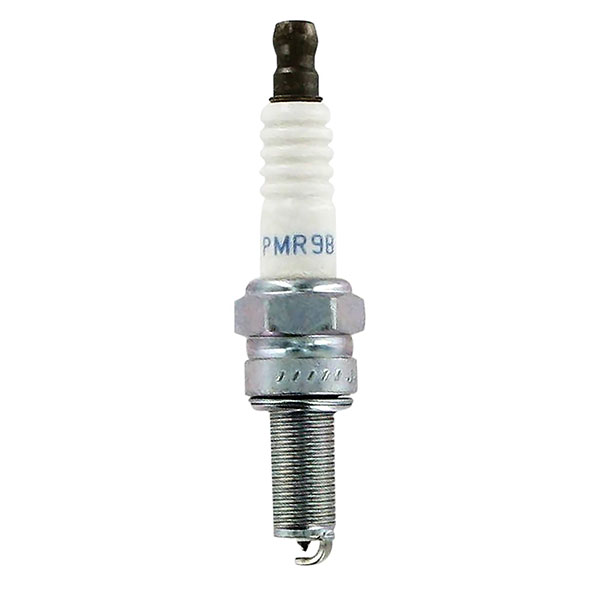

NGK Laser Platinum Spark Plug
4717 PMR9B
Item #: PMR9B
Manufacturer: NGK
49.9500
EACH
NGK 4717 PMR9B Laser Platinum Spark Plug
NGK Laser Platinum Series plugs provide high ignitability and longer service life. Laser welded dual platinum surfaces ensure slow wear rate providing stable idle, superior anti fouling, improved fuel efficiency and lower emissions.
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage
| Shell | |
| Thread Diameter | 10mm |
| Thread Pitch | 1.0mm |
| Seat Type | Gasket |
| Reach | 19mm (3/4") |
| Hex Size | 5/8" (16mm) |
| Terminal Type | Solid |
| Overall Height | Bantam |
| Gap | .028" (0.7mm) |
| Center Electrode | |
| Material | Platinum |
| Type | Fine Wire |
| Size | 1.0mm |
| Projection | Non-Projected |
| Ground Electrode | |
| Material | Platinum |
| Type | Standard |
| Shape | |
| Quantity | 1 |
| Specifications | |
| Resistor | Yes |
| Resistor Value | 5k Ohm |
| Heat Range | 9 |
| Torque Specs | Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft. |
| Longevity | 90k Miles |
