NGK Laser Iridium Spark Plug
91064 SIMR8A9
Item #: SIMR8A-9
Manufacturer: NGK
36.9500
EACH

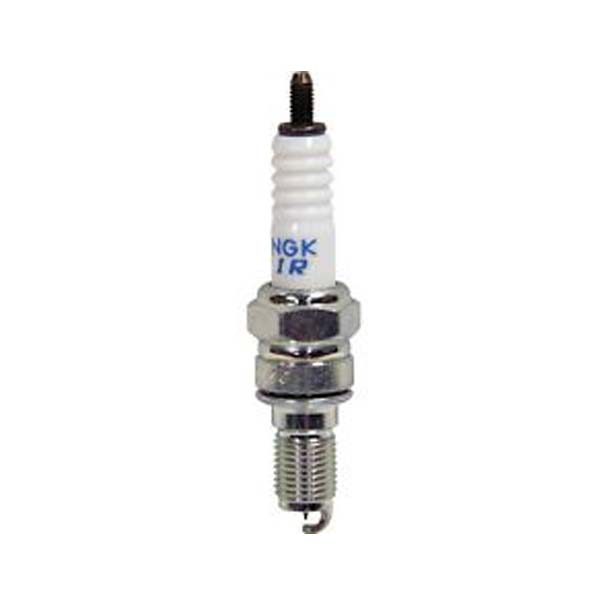

NGK 91064 SIMR8A9 Laser Iridium Spark Plug
NGK single iridium plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.
- Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Copper core aids in heat removal
- Triple seals prevent leakage
| Shell | |
| Thread Diameter | 10mm |
| Thread Pitch | 1.0mm |
| Seat Type | Gasket |
| Reach | 19mm (3/4") |
| Hex Size | 5/8" (16mm) |
| Terminal Type | Threaded Stud |
| Overall Height | ISO |
| Gap | .035" (0.9mm) |
| Center Electrode | |
| Material | Iridium |
| Type | Fine Wire |
| Size | 0.6mm |
| Projection | Projected |
| Ground Electrode | |
| Material | Platinum |
| Type | Square |
| Shape | Taper Cut |
| Quantity | 1 |
| Specifications | |
| Resistor | Yes |
| Resistor Value | 5k Ohm |
| Heat Range | 8 |
| Torque Specs | Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft. |
| Longevity | 100k Miles |
