Home  >  Snowmobile  >  Electrical  >  Spark Plugs  > NGK V-Power Spark Plug

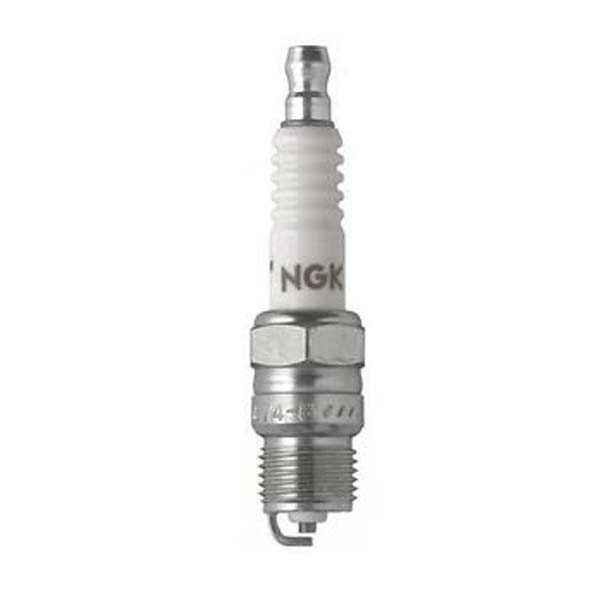

NGK V-Power Spark Plug
2771 UR5

Item #: UR5
Manufacturer: NGK
6.9500
EACH

NGK 2771 UR5 V-Power Spark Plug

NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Shell
Thread Diameter 14mm
Thread Pitch 1.25mm
Seat Type Tapered
Reach 11.6mm (.460")
Hex Size 5/8" (16mm)
Terminal Type Solid
Overall Height ISO
Gap .039" (1.0mm)

Center Electrode
Material Nickel
Type V-Cut
Size 2.5mm
Projection Projected

Ground Electrode
Material Nickel
Type Standard
Shape
Quantity 1

Specifications
Resistor Yes
Resistor Value5k Ohm
Heat Range 5
Torque Specs Cast Iron: 10.8-18 lb. ft.
Aluminum: 10.8-14.5 lb. ft.
Longevity 30k Miles
