NGK V-Power Spark Plug
4043 ZFR4F-11

Item #: ZFR4F-11
Manufacturer: NGK
8.9500
EACH

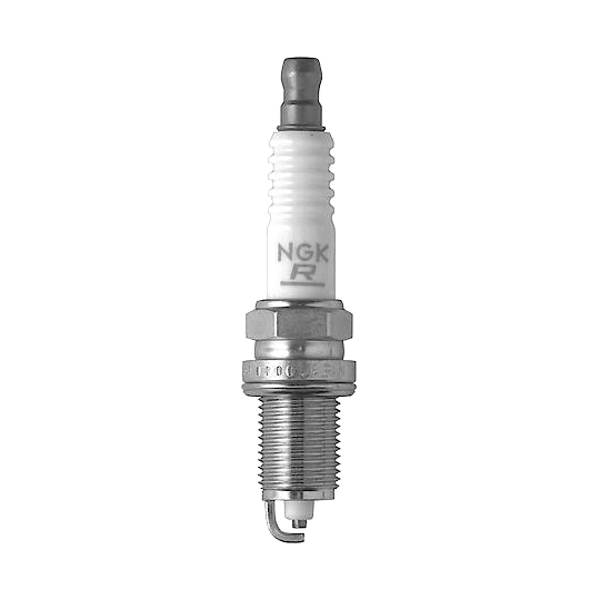

NGK 4043 ZFR4F-11 V-Power Spark Plug

NGK V-Power plugs feature a unique v-cut in the center electrode that directs the spark to the edge of the electrode, helping the spark develop more rapidly, increasing ignitability and reducing quenching.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Shell
Thread Diameter 14mm
Thread Pitch 1.25mm
Seat Type Gasket
Reach 19mm (3/4")
Hex Size 5/8" (16mm)
Terminal Type Solid
Overall Height ISO
Gap .043" (1.1mm)

Center Electrode
Material Nickel
Type V-Cut
Size 2.5mm
Projection Extended Projected

Ground Electrode
Material Nickel
Type Standard
Shape
Quantity 1

Specifications
Resistor Yes
Resistor Value 5k Ohm
Heat Range 4
Torque Specs Cast Iron: 18-25.3 lb. ft.
Aluminum: 18-21.6 lb. ft.
Longevity 30k Miles
